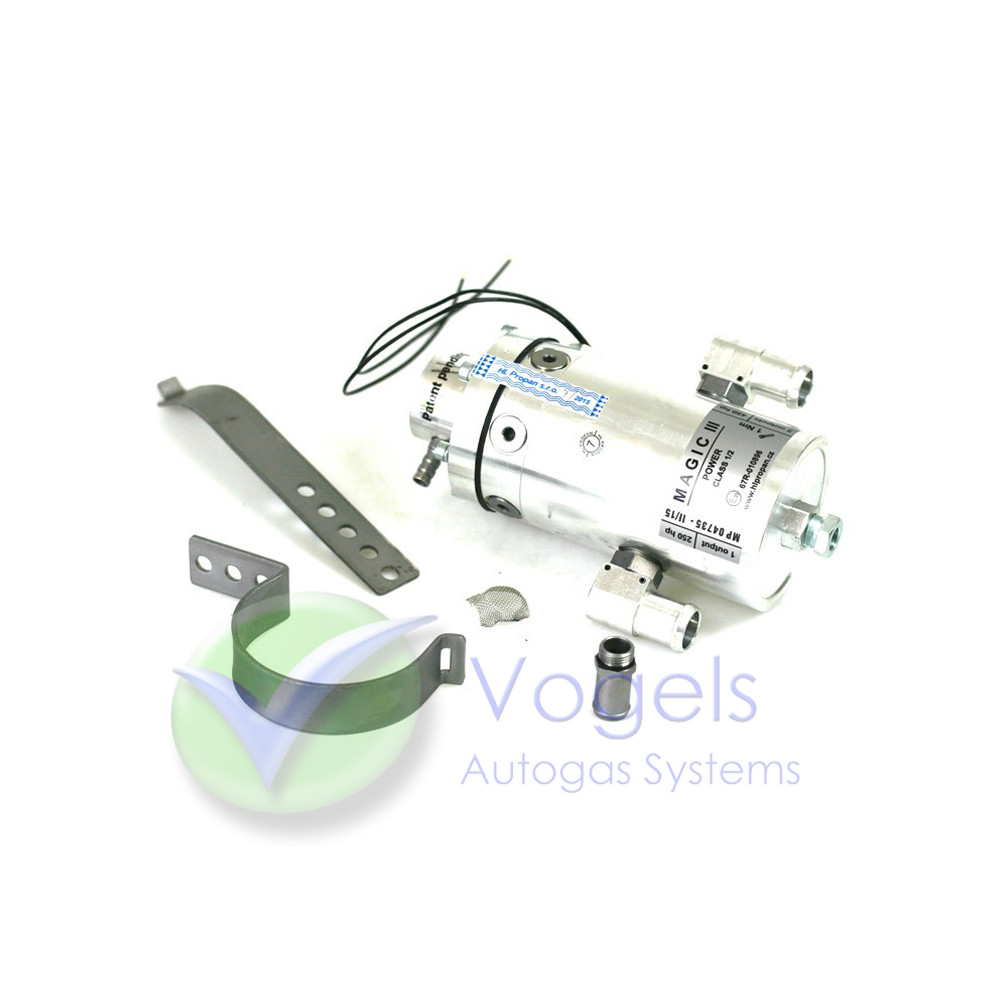

MAGIC 3 Power LPG Reducer for engines up to 350kW - Adjustable pressure
MAGIC 3 Power LPG Reducer for engines up to 350kW - Adjustable pressure
MAGIC 3 Power LPG Reducer for engines up to 350kW - Adjustable pressure
Inlet connection: Ø8mm
Outlet connection: Ø12mm
Water connections: 2 x 90° Ø16mm
MAP connection: Ø6mm
Power: up to 350kW (470 HP) Engine power
Output pressure: 0.8 - 1.6 bar adjustable
Integrated temp. sensor: NTC sensor (4.7 kΩ)
Gas shut-off valve: Excl. External gas shut-off valve
Pressure class: 67R-01 Class 1/2
251017100
MAGIC 3 Power LPG Reducer for engines up to 350kW - Adjustable pressure
Inlet connection: Ø8mm
Outlet connection: Ø12mm
Water connections: 2 x 90° Ø16mm
MAP connection: Ø6mm
Power: up to 350kW (470 HP) Engine power
Output pressure: 0.8 - 1.6 bar adjustable
Integrated temp. sensor: NTC sensor (4.7 kΩ)
Gas shut-off valve: Excl. External gas shut-off valve
Pressure class: 67R-01 Class 1/2
MAGIC 3 Power LPG Reducer for engines up to 350kW - Adjustable pressure
Inlet connection: Ø8mm
Outlet connection: Ø12mm
Water connections: 2 x 90° Ø16mm
MAP connection: Ø6mm
Power: up to 350kW (470 HP) Engine power
Output pressure: 0.8 - 1.6 bar adjustable
Integrated temp. sensor: NTC sensor (4.7 kΩ)
Gas shut-off valve: Excl. External gas shut-off valve
Pressure class: 67R-01 Class 1/2
251017100
